Our Capabilities in Detail
Every mould is engineered for the specific demands of slurry pumping, mining wear applications, and high-volume industrial casting.
Rubber Moulds
High-durability moulds for rubber-lined pump bodies, impellers, casings, and wear-resistant components. Designed for abrasive slurry environments with long service life.
- Applications Slurry pump bodies, impellers, casings
- Materials Natural / NBR / EPDM / SBR
- Max Size Up to 2,000 × 1,500 mm
- Tolerance ±0.3 mm

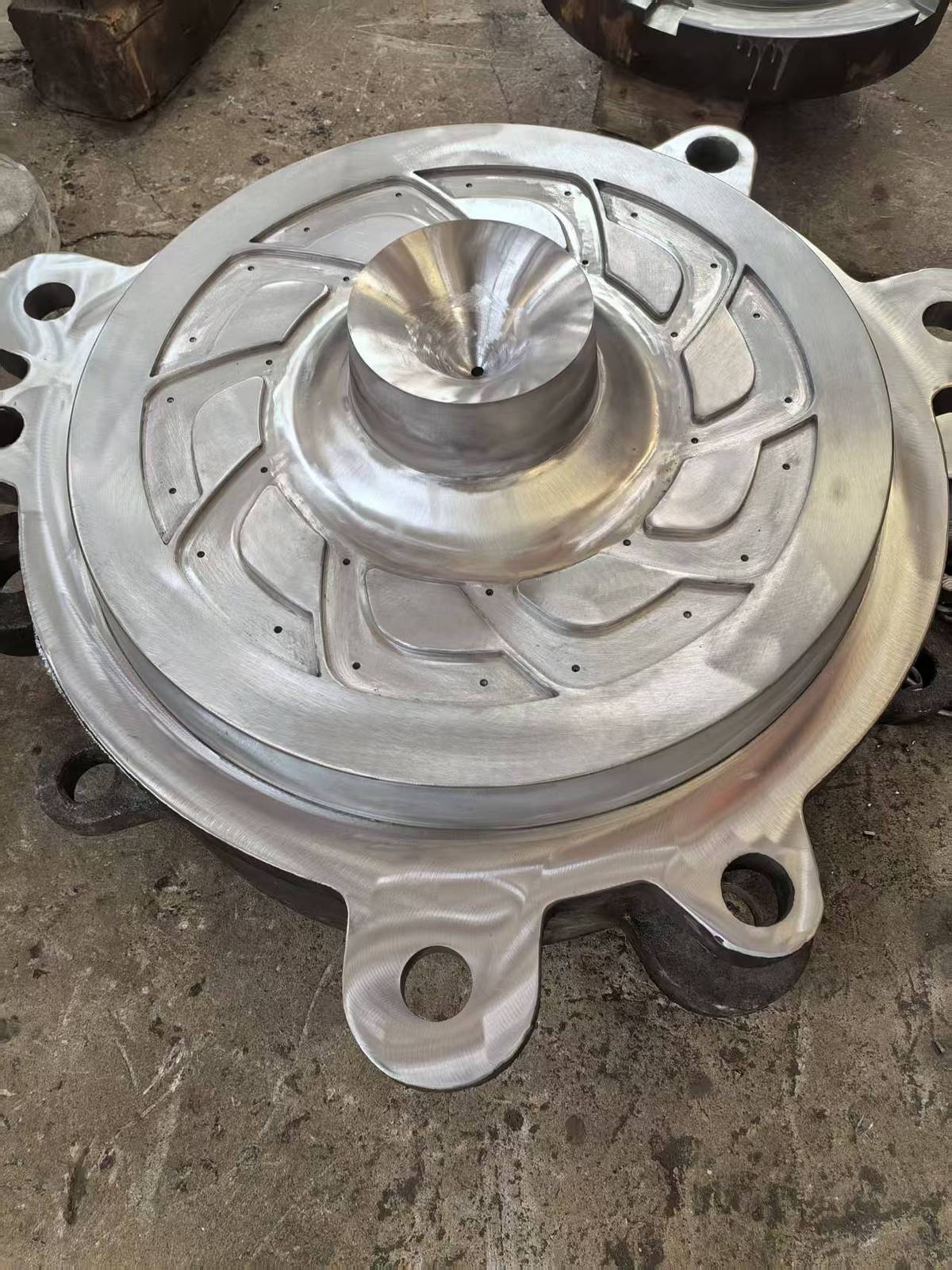

Polyurethane (PU) Moulds
Precision moulds for front liners, pump covers, cyclones, and mining wear parts. Superior abrasion resistance with complex geometry capability for polyurethane casting.
- Applications Front liners, cyclones, pump covers
- Materials PU elastomer, castable urethane
- Hardness Range 60A – 95 Shore D
- Max Size Up to 1,800 × 1,200 mm
Metal Casting Moulds
Casting tooling and patterns for high-chrome iron, alloy steel and cast iron pump bodies, impellers and industrial components. Built for high-volume production with consistent dimensional accuracy.
- Applications Hi-Chrome impellers, pump casings
- Casting Types Resin sand, lost foam, shell (croning)
- Workpiece Capacity Up to 30 t machined, 35 t crane
- CNC Finish 4m × 6m gantry capacity
Lost Foam Patterns
Cost-effective expandable polystyrene (EPS) patterns for prototype development and small-batch production. Ideal for complex geometries and rapid iteration.
- Applications Prototypes, small-batch castings
- Pattern Material EPS / expandable foam
- Lead Time 5 – 10 days typical
- MOQ 1 piece acceptable
Wooden Patterns
Traditional wooden patterns for sand casting, ideal for large one-off castings and verification before committing to permanent metal or resin moulds.
- Applications Large castings, verification patterns
- Wood Types Pine, hardwood, laminated boards
- Max Size Up to 3,000 × 2,500 mm
- Finish CNC + hand-finished
CNC Machined Components
Precision CNC machining of pump components, mould bases, inserts, cores and wear plates. Over 20 CNC machine tools, most rated for cast steel, including large-format gantry mills with 4m × 6m travel and a heavy-duty CNC horizontal machining centre.
- Equipment 20+ CNC tools incl. gantry & horizontal MC
- Travel 4,000 × 6,000 × 1,500 mm
- Materials High-chrome iron, ductile iron, cast steel, alloy steel
- Tolerance Per drawing, confirmed at review
